Interior cove sample
COB 8mm 320LED DC12/24V CRI95 LED Strip
- Voltage options
- DC12/24V
- PCB width
- 8mm
- Power
- 12W/M
- CRI
- CRI 95
Mock up the actual cove and diffuser. Confirm the selected CCT and feed arrangement for each branch.
Compare lighting by hotel zone, then confirm the model, profile, controls and service access.
We understand the common issues that lighting contractors and hotel project teams face on-site.
Long LED strip installations often suffer from voltage drop, causing visible brightness differences between the start and end of the run.
Traditional SMD strips create visible dot patterns in cove lighting, undermining the smooth, premium appearance expected in hotels.
Different batches from unreliable suppliers often show visible color temperature shifts, creating an unprofessional appearance across areas.
Ceiling and cove installations are hard to access for replacement. Poor quality strips fail prematurely, increasing project maintenance costs.
Select CCT, color rendering and output against the design brief. Check fabrics, food and finishes under the sample rather than inferring appearance from one parameter.
Model selection
Use the interior candidates for a mock-up, and assess protected constructions separately against their exact exposure and color requirements.
Interior cove sample
Mock up the actual cove and diffuser. Confirm the selected CCT and feed arrangement for each branch.
Finish-sensitive interior detail
Compare on fabric, food or joinery finishes and confirm dimming with the specified driver.
Protected construction to review
This model lists CRI80 and IP68. Confirm whether it meets the project color requirement, and review joints, cable entries and exposure. The listing does not approve a pool or spa installation.
Values above are catalog specifications. Confirm the exact voltage version, CCT, cut unit, powered-length limit and protection construction before sample approval. A reel length is not a powered-run limit.
Use the relevant guide to prepare your drawing, sample review or quotation.
Review sample candidates by hotel zone and installation conditions.
Plan service access and circuit labels before closing the ceiling.
Use the free comparison sheet to identify missing scope and specifications.
Match replacement stock to model, color grouping and maintenance needs.
A quick reference guide for lighting designers and project engineers working on hotel projects.
Review feed points, optical appearance and maintenance access before approving a repeated detail.
Always mount LED strips on aluminum extrusion profiles. This extends lifespan significantly by reducing operating temperature, especially in enclosed ceiling coves.
Set feed points from the selected model, branch load, cable route and permitted voltage drop. A fixed five-meter rule does not apply to every strip; approve the longest representative branch.
Test the strip and compatible diffuser in the actual cove or profile. Inspect joints, viewing angles and reflections at the required dimming scenes.
Match driver wattage to 80% of maximum load. Choose dimmable drivers (0-10V or DALI) for guest rooms and spaces requiring atmosphere control.

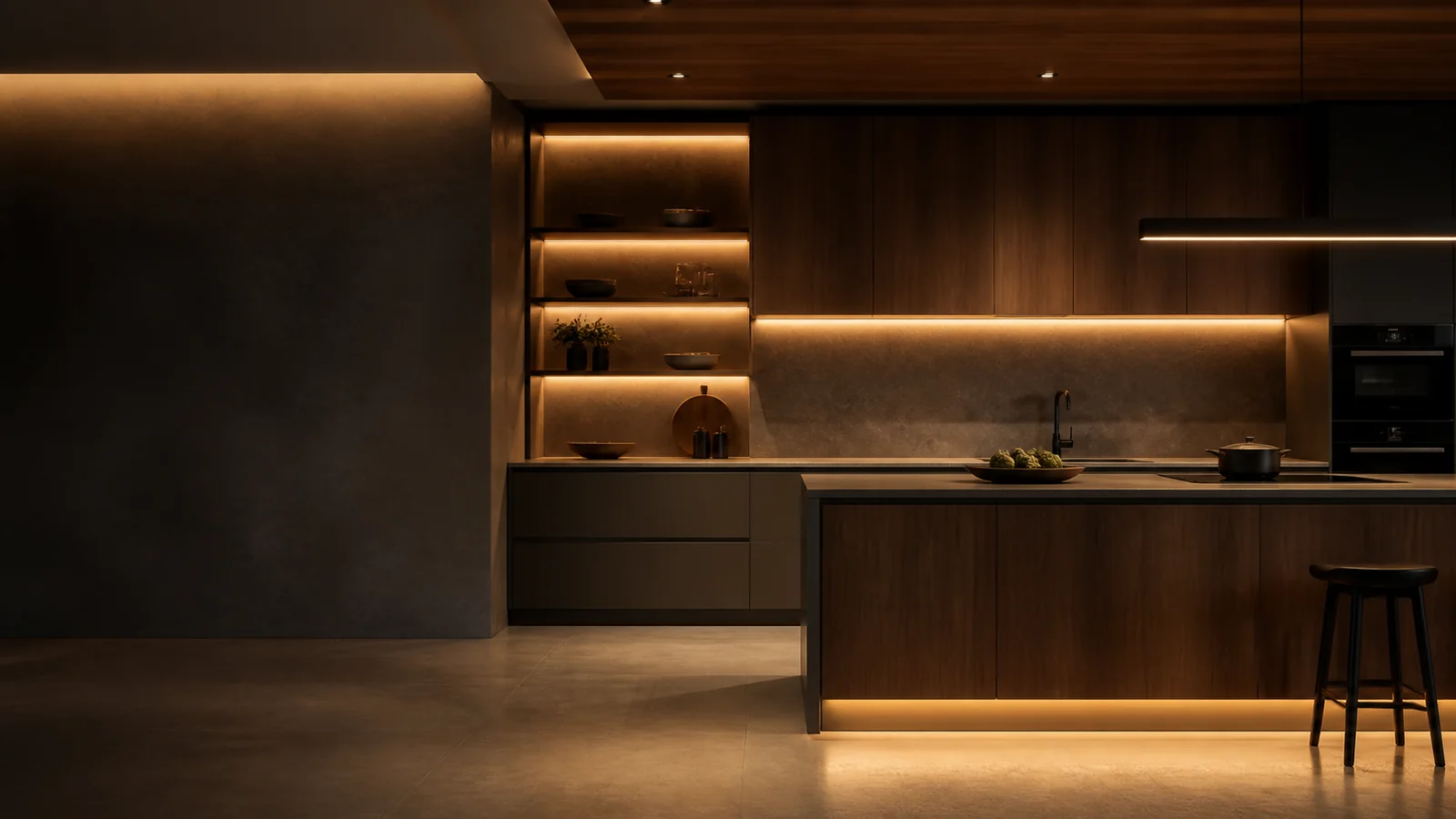

Hospitality lighting concepts showing how suitable LED strip families can be applied in key hotel areas.






Answers to the most common questions from hotel lighting contractors and project managers.
A higher-CRI COB model is a starting sample for a shallow visible cove. Compare it with SMD where a deeper profile or another output is required. Approve the actual diffuser, CCT, dimming scenes and feed arrangement against the lighting brief.
24V can reduce current at the same power, but voltage selection still depends on cut length, driver, controls and branch layout. Size cables and feeds from the actual load and distance; do not assume a smaller cable is suitable without checking it.
Select CCT against the design brief and adjacent lighting. Compare available samples on the actual finishes and at the required dimming scenes. Confirm the requested CCT for the exact model before ordering.
Calculate each branch load and cable drop, then choose a model-approved feed arrangement with a matching driver. Measure the longest representative branch and confirm acceptable near-to-far output. Provide the route drawing and driver locations for review.
Request a review of the required CCT, achievable cut lengths, leads, connectors and labels. Standard MOQ is 500m and customization normally starts from 2,000m, subject to model and scope. Sample availability and lead time are confirmed with the quotation.
Send us your project details for a customized LED strip recommendation and specification review.
